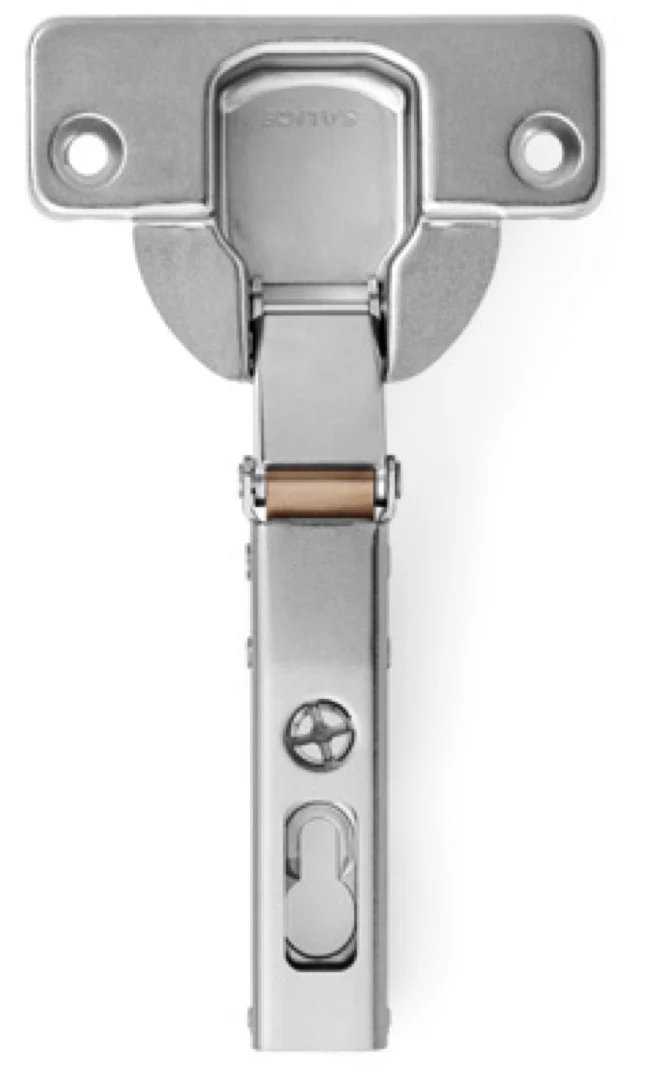

Salice 40mm Cup 94° Full Overlay Hinge - CNA7A99

Description

The Salice Series N hinge range is designed for profile and thicker doors up to 40mm thick.

Tech Details

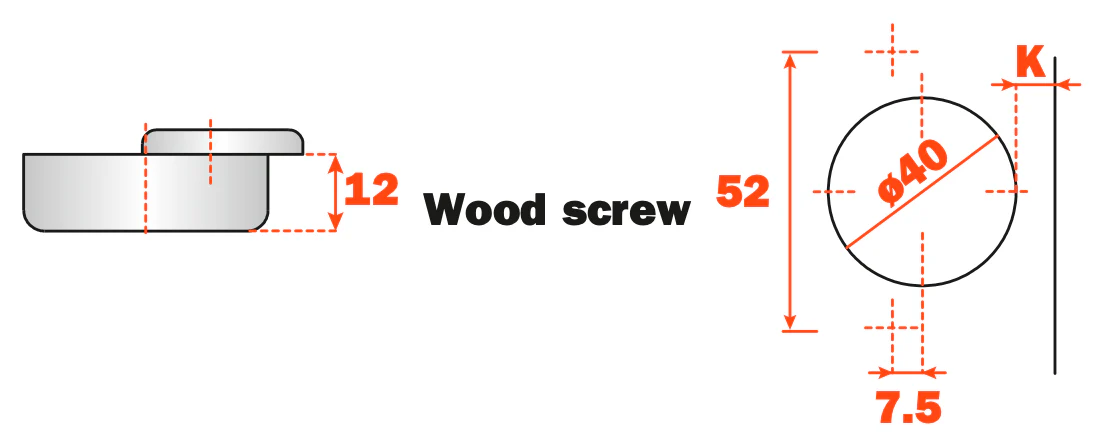

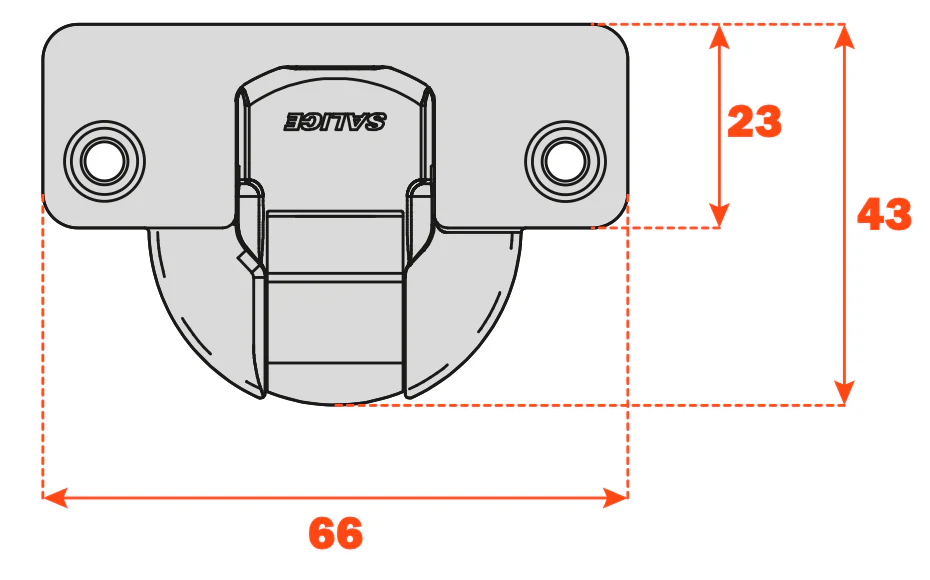

• Full overlay hinge - 0mm crank
• 52mm screw centres
• Wood screw fixing (not supplied)
• To suit door thickness up to 40mm
• 40mm diameter cup
• 12mm deep cup
• 94Degree opening
• Possible drilling distance (K): 3mm - 14mm
