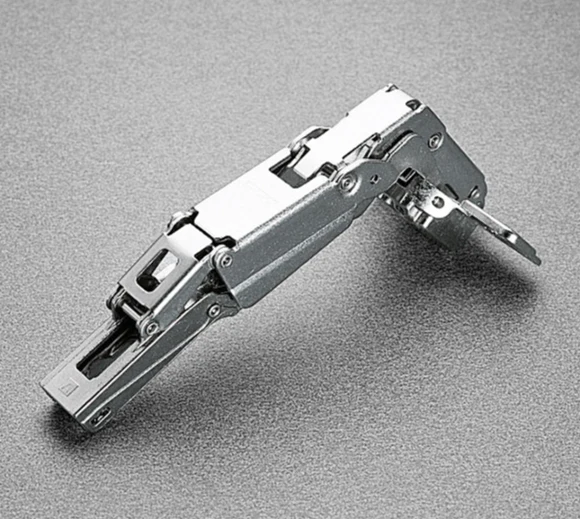

Salice 165Ā° Full Overlay Sprung Cabinet Hinge 48mm Centres 10mm Dowel Fix - C2BFA99
The Salice Series 200 sprung hinge is an ideal solution for doors between 16-26mm thick.

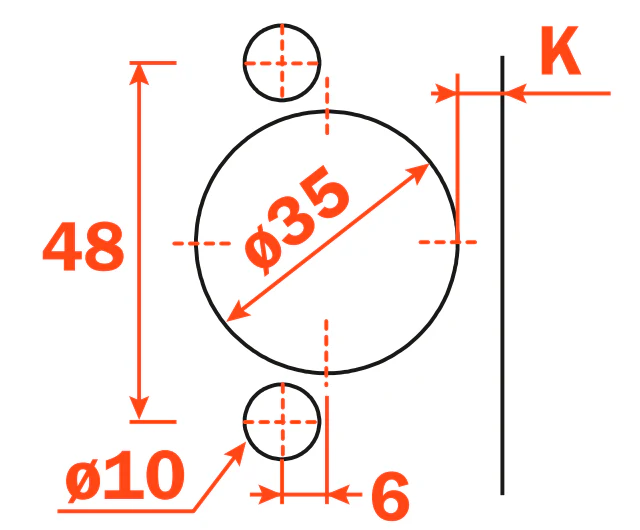

Fixing Centres: 48mm
Fixing Method: 10mm Knock-in dowels
For technical information please see the Downloads tab above.
The wide-opening angle allows greater ease of access in tighter spaces and allows all the cupboard to be accessed.Ā
The full overlay hinge is suitable for all doors where the door fully overlays the cabinet, so that when the door is closed, you can see none or a few mm of the frame.
WeĀ recommend using theĀ BAR3RĀ orĀ BARGRĀ series of mount plates with these hinges. You will usually require a 0mm height mount plate with this hinge.
If you are unsure which hinge you have please forward a few photos of your hinge toĀ [email protected]
Original: $8.80
-65%$8.80
$3.08Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Salice Series 200 sprung hinge is an ideal solution for doors between 16-26mm thick.
Fixing Centres: 48mm
Fixing Method: 10mm Knock-in dowels
For technical information please see the Downloads tab above.
The wide-opening angle allows greater ease of access in tighter spaces and allows all the cupboard to be accessed.Ā
The full overlay hinge is suitable for all doors where the door fully overlays the cabinet, so that when the door is closed, you can see none or a few mm of the frame.
WeĀ recommend using theĀ BAR3RĀ orĀ BARGRĀ series of mount plates with these hinges. You will usually require a 0mm height mount plate with this hinge.
If you are unsure which hinge you have please forward a few photos of your hinge toĀ [email protected]
