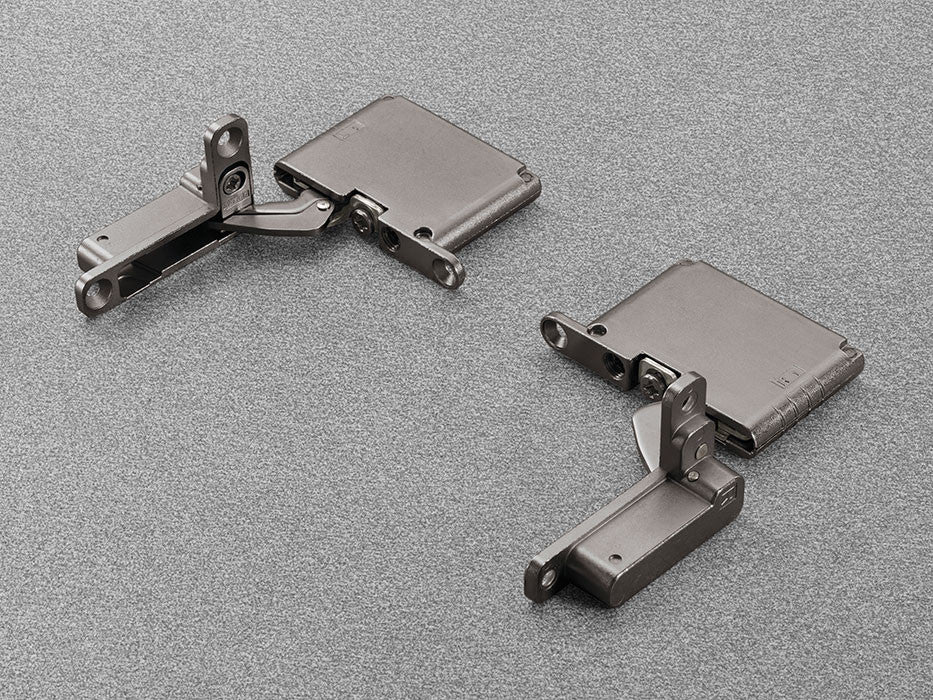

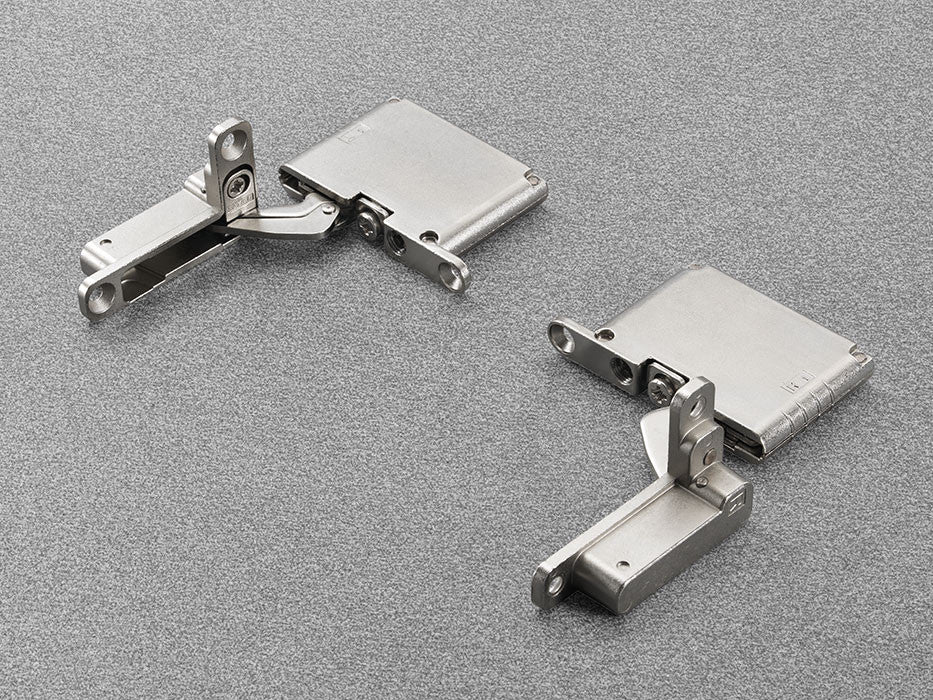

Salice Air Smove Soft Close Hinge

This is for a kit pack, including everything you need for one door - two hinges and fixing screws.

This listing is for the model featuring integrated soft close mechanism.

Available in:

• Titanium - CEL6XE6XXV
• Nickel - CEL6XE9XXV

Please select your requirements using the drop down boxes.

Specifications:

• For minimum 18mm thick doors and aluminium framed doors
• Maximum Door Weight: 20kg
• Maximum Door Dimension: 2700mm (h) x 600mm (w)
• 16.5mm Deep Metal Cup in Door
• Gap require between door and frame: 2.5mm
• 105 Degree Opening
• Possible drilling distance on door: 3-6mm for wooden doors
• Fixed 4mm for aluminium doors

Please see the brochure link and video below for further information.

 Air Technical Brochure PDF
